INCH-POUND
MIL-PRF-6106/38D
7 June 2011
SUPERSEDING
MIL-PRF-6106/38C
10 November 2000
PERFORMANCE SPECIFICATION
RELAY, ELECTROMAGNETIC, TYPE I, MAGNETIC LATCH, PERMANENT
MAGNET DRIVE, LOW LEVEL TO 5 AMPERES, 2PDT,
HERMETICALLY SEALED
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall consist of this specification and MIL-PRF-6106.
Configuration A

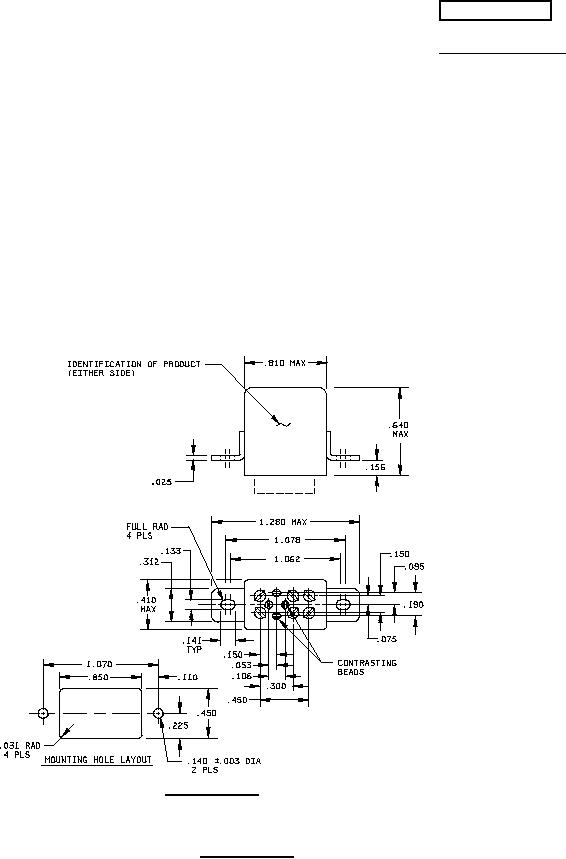

FIGURE 1. Outline drawing.
AMSC N/A
FSC 5945
