MIL-PRF-6106/33E
NOTES:
1. To identify circuit diagrams, coil diagrams, and terminal configurations, see table I.
2. Number of terminals varies dependent upon number of auxiliary contacts.
3. Semiconductors shall be JANTX or JANTX screened. Coil diagram 3 shall continue to operate should the
suppression circuit be in a failure mode (not applicable to coil diagram 2). Diodes shall have a peak inverse
voltage rating of 600 V dc minimum.

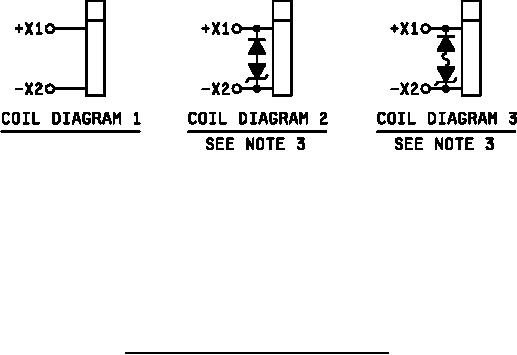

FIGURE 2. Circuit diagrams and terminal configurations - Continued.
REQUIREMENTS:
Dash numbers and physical characteristics: See table I.
Duty rating: Continuous.
Coil data: See table II.
Operational data: See table II.
Contact voltage drop:
Initial: 0.150 volt.
After life: 0.175 volt.
Overload current: 3,200 amperes dc.
Rupture current: 4,000 amperes dc.
Interrupt current: Carry 2,000 amperes for 7 seconds and break five times (30 minutes off per cycle).
