MIL-PRF-6106/19G
Inches
mm
Inches
Mm
Inches
mm
.001
0.03
.156
3.96
.525
13.34
.002
0.05
.172
4.37
.562
14.27
.003
0.08
.234
5.94
.625
15.88
.005
0.13
.250
6.35
.630
16.00
.020
0.51
.270
6.86
1.010
25.65
.040
1.02
.281
7.14
1.025
26.04
.050
1.27
.300
7.62
1.062
26.97
.062
1.57
.375
9.52
1.396
35.46
.093
2.36
.432
10.97
1.406
35.71
.100
2.54
.485
12.32
1.446
36.73
.150
3.61
.500
12.70
1.718
43.64
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .010 (0.25 mm).
4. Terminal numbers need not appear on the relay header provided there is a suitable legible circuit diagram
affixed to the relay that identifies each terminal location specified.
5. Relay must not operate or become damaged by reverse polarity. Semiconductors shall not be used for this
purpose.

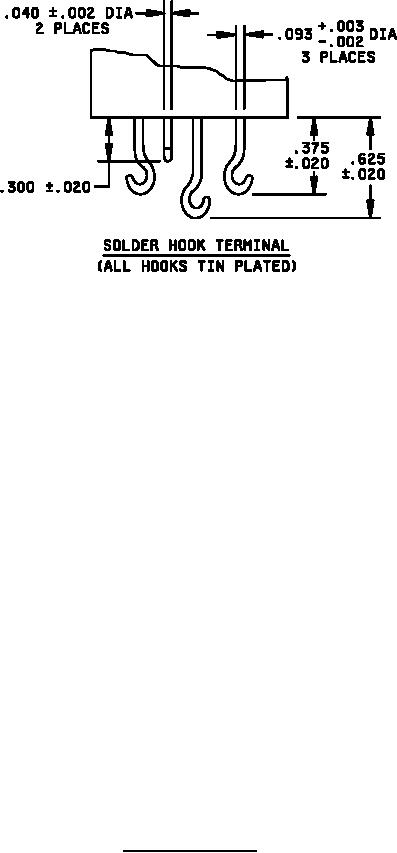

6. Hook terminals will accept one no. 12 AWG stranded wire.
7. Permanent magnet drive consists of permanent magnet with its flux path switched and combined with the
electromagnetic flux.
8. Socket pin terminals shall provide the operational, environmental, and interface characteristics to provide a
reliable interconnect to gold-plated contacts. Terminals shall be gold plated. Gold plating of the polarizing pin
is optional. One system for gold plating that may be used is ASTM B488, type 3, class 1.25 with a nickel
underplate of 50 to 150 microinches thick. The gold plating system shall enable the product to meet the
performance requirements of this specification and shall be approved by the qualifying activity.
9. Gasket shall provide a reliable seal between the relay and mating socket that will meet the environmental,
operational, and interface requirements of the relay with the mating socket. The gasket shall have shore
hardness 20 5, thickness .050 .005. Gasket material according to SAE-AMS 3332 has been considered
acceptable.
FIGURE 1. Relay, outline drawing - Continued.
4
