MIL-PRF-39016/44E
Inches
mm
.002
0.05
.003
0.08
.015
0.38
.020
0.51
.030
0.76
.100
2.54
.120
3.05
.125
3.18
.187
4.75
.190
4.83
.200
5.08
.250
6.35
.400
10.16
.410
10.41
.600
15.24
.810
20.57
1.062
26.97
1.078
27.38
1.320
33.53
2.950
74.93
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Indicated terminal shall be marked with a contrasting bead.
5. Circuit diagram marked on top if legible from the mounted position, otherwise marking surface is optional.
6. Mounting screw head clearance based on use of No. 4 fillister head screws.
7. Coil symbols are optional in accordance with MIL-STD-1285.
8. Mounting surface finish shall be compatible with aluminum (duralumin type) as defined by MIL-STD-889.
9. Terminal numbers in circuit diagram are for reference only. Numbers do not appear on relay.

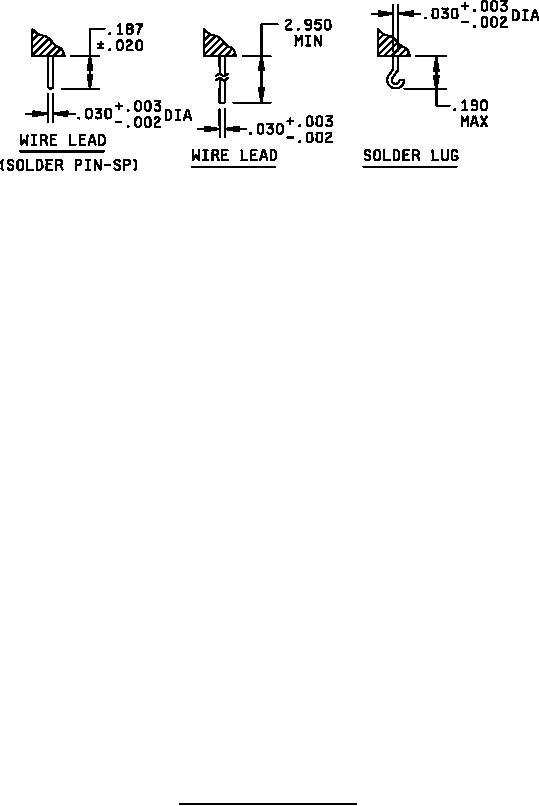

FIGURE 1. Dimensions and configuration - Continued.
