INCH-POUND
MIL-PRF-39016/41E
15 June 2005
SUPERSEDING
MIL-PRF-39016/41D
20 July 1988
PERFORMANCE SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, ESTABLISHED RELIABILITY, DPDT,
LOW LEVEL TO 1 AMPERE, TERMINALS 0.100-INCH GRID PATTERN
SENSITIVE, 60 MILLIWATTS, COIL OPERATE POWER AT 25°C
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The complete requirements for acquiring the relays described herein shall
consist of this specification sheet and the latest issue of MIL-PRF-39016.
Inches
mm
Inches
mm
.001
0.03
.031
0.79
.002
0.05
.035
0.89
.003
0.08
.100
2.54
.017
0.43
.335
8.51
.375
9.51
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Terminal numbers shown above are for reference only. Numbers do not appear on the relay.
5. Coil symbol optional in accordance with MIL-STD-1285.
6. Circuit diagram shown on part is the terminal view.
7. Dash numbers -057 through -064 shall be supplied with a case grounding pin welded to the header as shown.

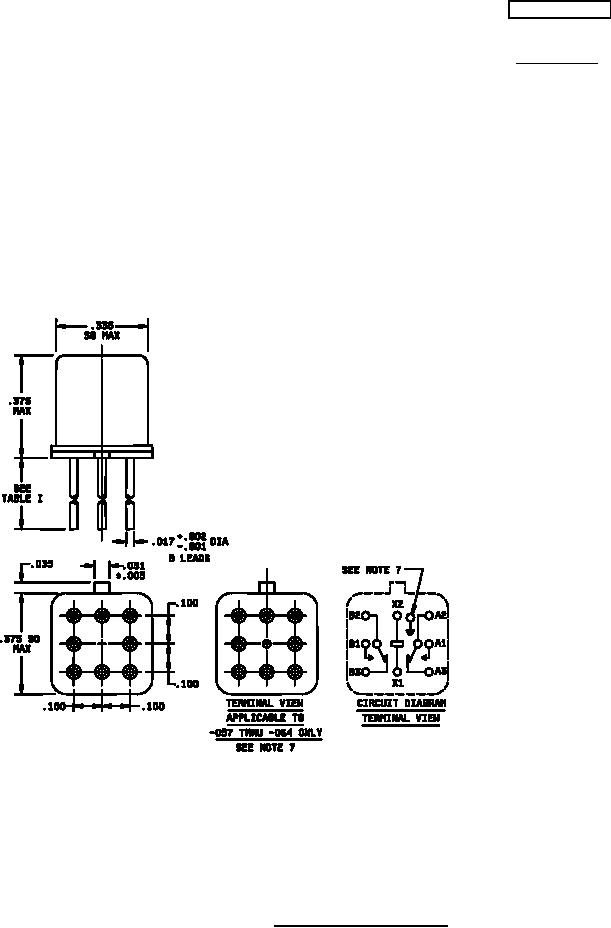

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5945
