MIL-PRF-39016/19H
FIGURE 1.
mm
Dimensions and
configuration.Inches
.001
0.03
.002
0.05
.003
0.08
.005
0.13
.014
0.36
.017
0.43
.031
0.79
.035
0.89
.047
1.19
.100
2.54
.170
4.32
.280
7.11
.300
7.62
NOTES:
.335
8.51
1. Dimensions are in inches.
.370
9.40
2. Metric equivalents are given for general information only.
.500
12.70
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Terminal numbers shown above for reference only. Numbers do not appear on relay.
5. Relays shall have a plus (+) sign placed on the circuit diagram as shown.
6. Coil symbol optional in accordance with MIL-STD-1285.
7. Circuit diagram shown on part is the terminal view.
8. Spacer mounting pad shall be a polyester film per MIL-I-631, Type G, Class I.
9. M39016/19-049 through -054 shall be supplied with a case grounding pin welded to the relay header as shown.

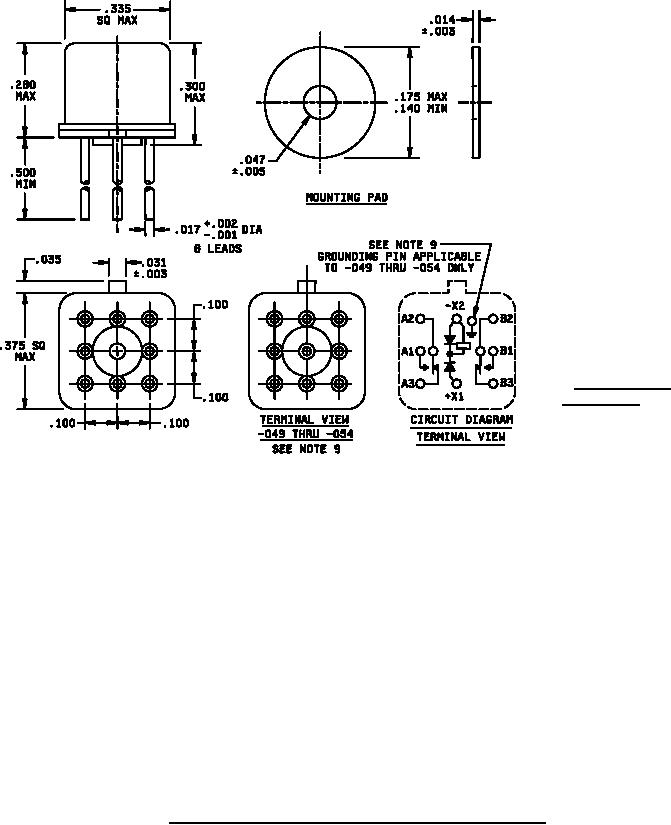

FIGURE 2. Dimensions and configuration (relay with spacer mounting pad).
2
