MIL-PRF-28750/10C
Inches
mm
.05
.002
.63
.025
1.02
.040
2.03
.080
4.37
.172
6.22
.245
12.83
.505
14.0
.55
20.96
.825
33.0
1.30
39.9
1.57
46.86
1.845
50.5
1.99
52.1
2.05
61.2
2.41
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (.25mm)
4. Terminal numbers shown above are for reference only, and do not appear on the header.
FIGURE 1. Outline drawing and dimensions - Continued.

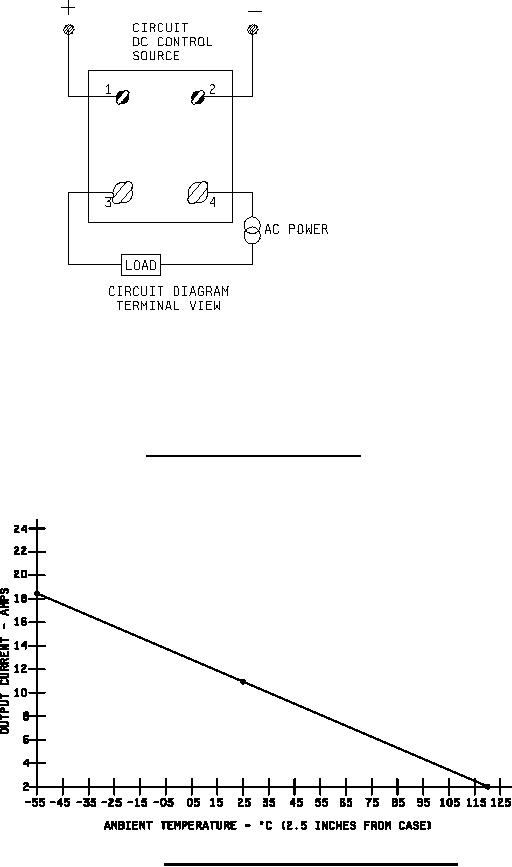

FIGURE 2. Output current verses ambient temperature.
