INCH-POUND
MIL-DTL-83729/6C
13 March 2013
SUPERSEDING
MIL-DTL-83729/6B
14 June 2002
DETAIL SPECIFICATION SHEET
CHOPPERS, ELECTROMECHANICAL, HERMETICALLY SEALED,
SINGLE POLE, DOUBLE THROW, BREAK BEFORE MAKE
This specification is approved for use by all Departments
and Agencies of the Department of the Defense.
The requirements for acquiring the product described herein shall consist
of this specification sheet and MIL-DTL-83729.
Letter
Inches
mm
A
.763 MAX
19.38 MAX
B
1.438
36.53
B
1.391
35.33
C
.763
19.38
C
.745
18.92
D
.265
6.73
D
.235
5.97
E
.375
9.53
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances is ± .005 (.13 mm).
4. Manner of presenting the diagram is optional. Numbers are not required if shown with respect to terminal
arrangement.
5. When the coil is de-energized the center reed may be in any of 3 positions.

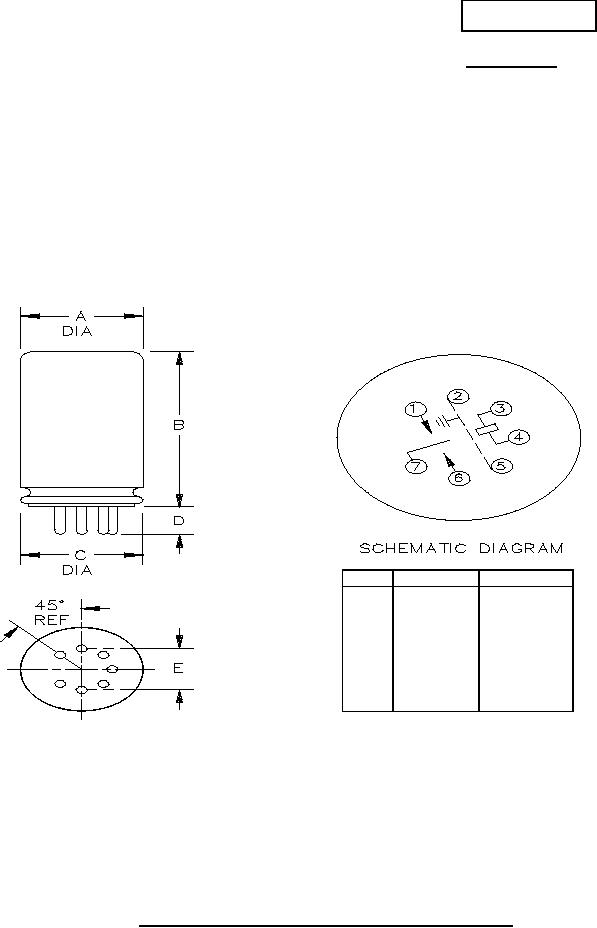

FIGURE 1. Outline drawing, terminal arrangement and schematic diagram.
AMSC N/A
FSC 5945
