AN3362
REVISION 7
mm
Inches
0.25
.010
1.57
.062
2.36
.093
6.35
.250
6.73
.265
7.14
.281
9.53
.375
10.31
.406
14.27
.562
15.09
.594
34.29
1.350
52.37
2.062
53.34
2.100
65.38
2.574
66.19
2.606
67.46
2.656
74.60
2.937
76.20
3.00
86.51
3.406
92.08
3.625
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .010.

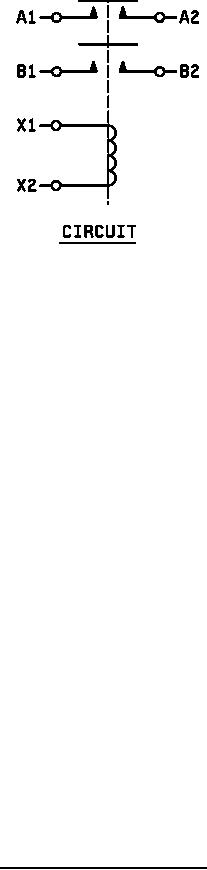

FIGURE 1. Configurations and dimensions - Continued.
