INCH-POUND
DETAIL SPECIFICATION SHEET
MS25463J
27 November 2003
SUPERSEDING MS25463H
7 December 1993
RELAYS, ELECTROMAGNETIC, 6 PDT, 5 AMPERES, TYPE I, MAGNETIC LATCH, SOCKET MOUNTED, HERMETICALLY SEALED
INACTIVE FOR NEW DESIGN AFTER 30 SEPTEMBER
1987. NO SUPERSEDING SPECIFICATION.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall consist of this specification and the latest issue of MIL-PRF-6106.

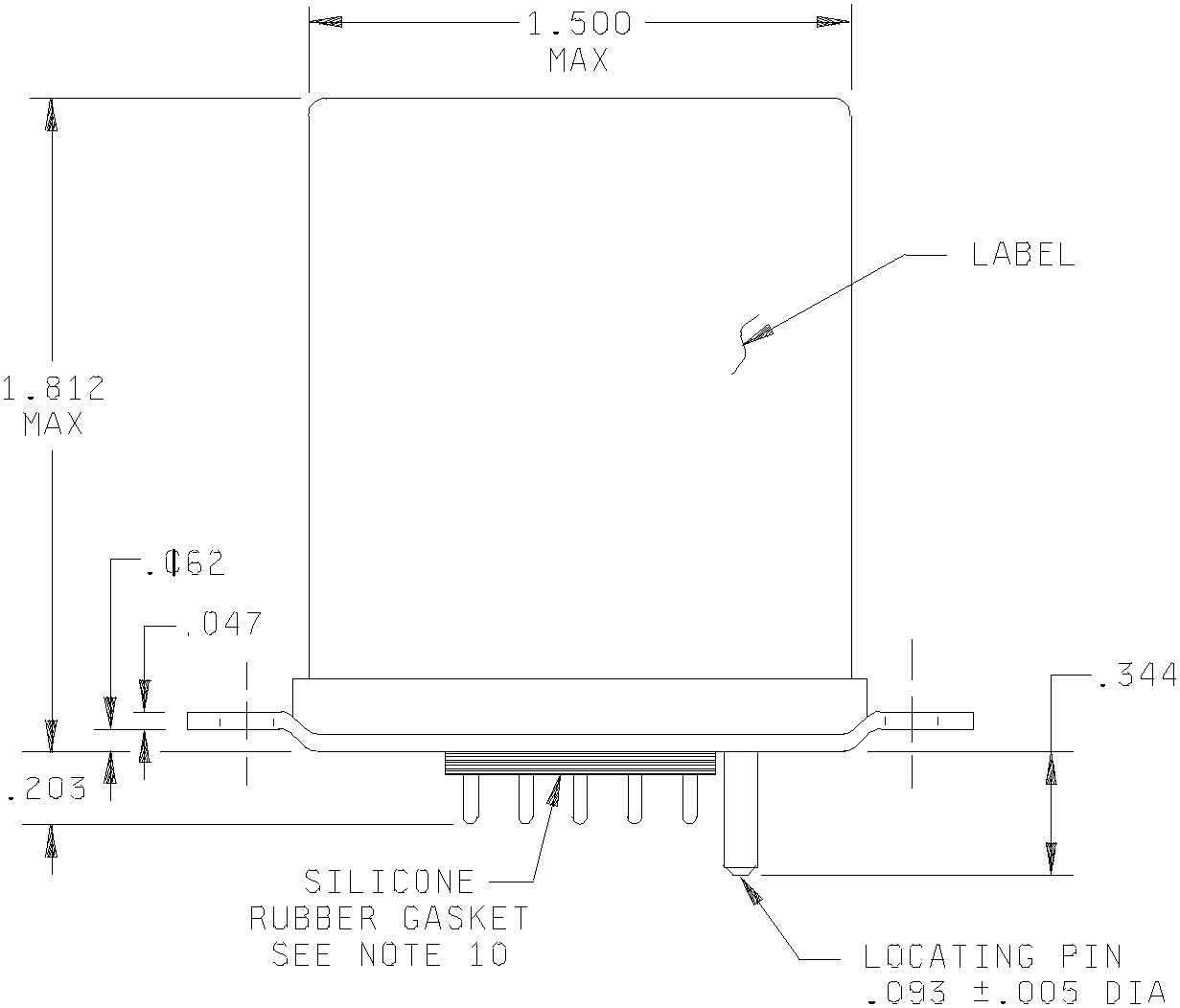

FIGURE 1. Design, dimensions, and circuit diagram.
AMSC N/A 1 of 5 FSC 5945
