MS24171H

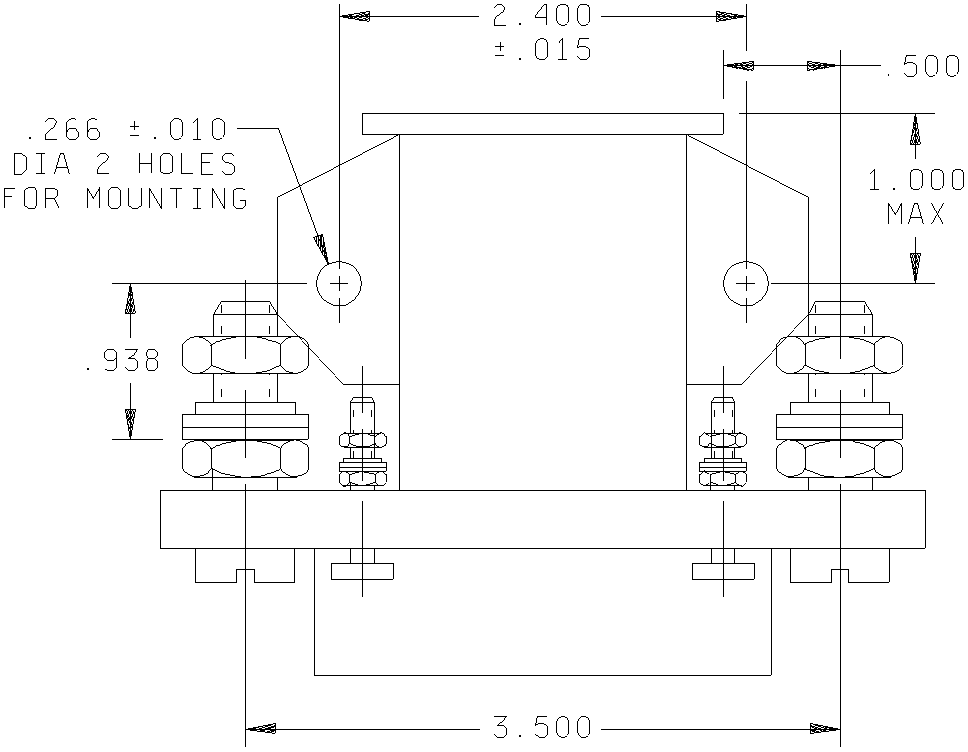

FIGURE 1. CONFIGURATION B. Dimensions and configurations (for details see tables I and II).
Inches .010 |
mm 0.25 |
Inches .484 |
mm 12.30 |
Inches 2.000 |
mm 50.80 |
.062 |
1.57 |
.500 |
12.70 |
2.406 |
61.11 |
.125 |
3.18 |
.750 |
19.06 |
2.960 |
75.18 |
.138 |
3.51 |
.813 |
20.66 |
3.000 |
76.20 |
.142 |
3.61 |
.875 |
22.22 |
3.313 |
84.15 |
.210 |
5.33 |
.906 |
23.01 |
3.500 |
88.90 |
.266 |
6.76 |
.938 |
23.83 |
3.750 |
95.26 |
.375 |
9.52 |
1.000 |
25.40 |
4.500 |
114.30 |
.438 |
11.13 |
1.531 |
38.89 |
NOTES:
1. Dimensions are in inches.
2. Terminal cover not required.
3. Additional flat washer may be used for terminal seat.
4. Part number MS24171-D1 replaces part no. MS24171-1.
5. This specification sheet takes precedence over documents referenced herein.
6. Referenced Government documents of the issue listed in the issue listed in Assist Online
(https://assist.daps.dla.mil) or Assist Quick Search (https://assist.daps.dla.mil/quicksearch) specified in the solicitation form a part of this specification herein.
7. Metric equivalents are given for general information only.
8. Unless otherwise specified, tolerances are ±.062 (1.57 mm).
9. Terminal temperature rise under continuous current conditions, 95°C. Mixed loads to be conducted at 71°C.
10. Shape of relay optional within envelope dimensions.
11. Cadmium or cadmium compounds are prohibited on external hardware.
12. Spring washer on drawing is a spring lock washer.
