MS24149 Relays, Electromagnetic, 2 Pdt, 10 Amperes, Type I, Hermetically Sealed

Pages 1 - 2 - 3 - 4 - 5

MS24149F

NOTES:

1.    Dimensions are in inches.

2.    Metric equivalents are given for general information only.

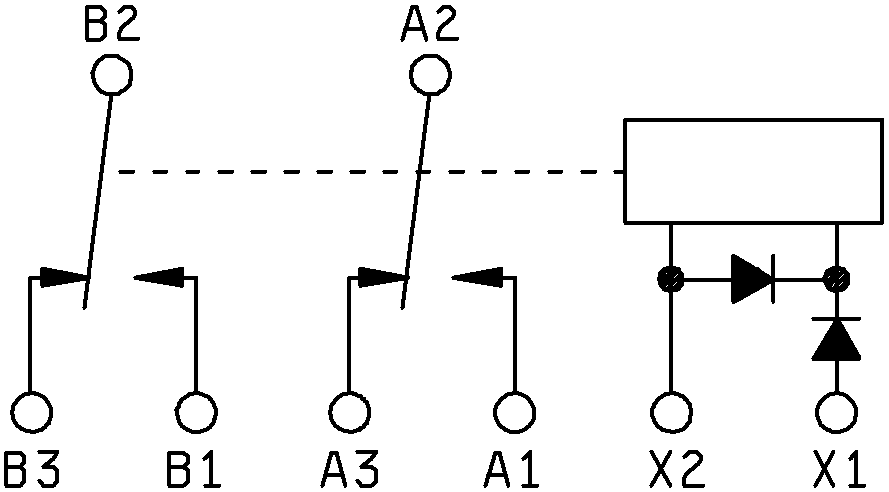

3.    Unless otherwise specified, tolerance is ±.010 (0.25 mm).

4.    Part number MS24149-D1 replaces part numbers AN3311-1 and AN3311-2.

5.    Interchangeability relationship - MS24149 parts can universally replace the cancelled AN3311 parts but cannot always replace the superseding MS24149 parts.

6.    Mounting holes 'A' to be used only when replacing AN3311.

7.    The use of diodes on ac relays is optional.  Actual application must be shown on label.

8.    Ac coils are inactive for new design.

9.    In the event of a conflict between the text of this specification and the references cited herein, the text of this specification shall take precedence.

10.    Copies of referenced documents are available online at https://assist.daps.dla.mil/quicksearch or from the

Standardization Document Order Desk, 700 Robbins Avenue, Building 4D, Philadelphia, PA 19111-5094.

11.   Cadmium or cadmium compounds are prohibited on external hardware.  A transition period to non-cadmium hardware is authorized for up to 1 year from the date of this revision.

FIGURE 1.  Dimensions and configurations - Continued.

TABLE I.  Dash numbers and characteristics.

1/  Dash number -A1 is inactive for new design and shall be used for support of existing equipment designs only.
