MILITARY SPECIFICATION SHEET Solenoid, Electrical; Class 1 (Cannon),
76 MM, 24 Volt DC , 28 AMP Max.
MIL-S-12109/18
22 November 1968
The complete requirements for procuring the Solenoid described herein shall consist of this document and the issue in effect of Specification MIL-S-12109.
This specification is mandatory for use by all Departments and Agencies of the
Department of Defense.

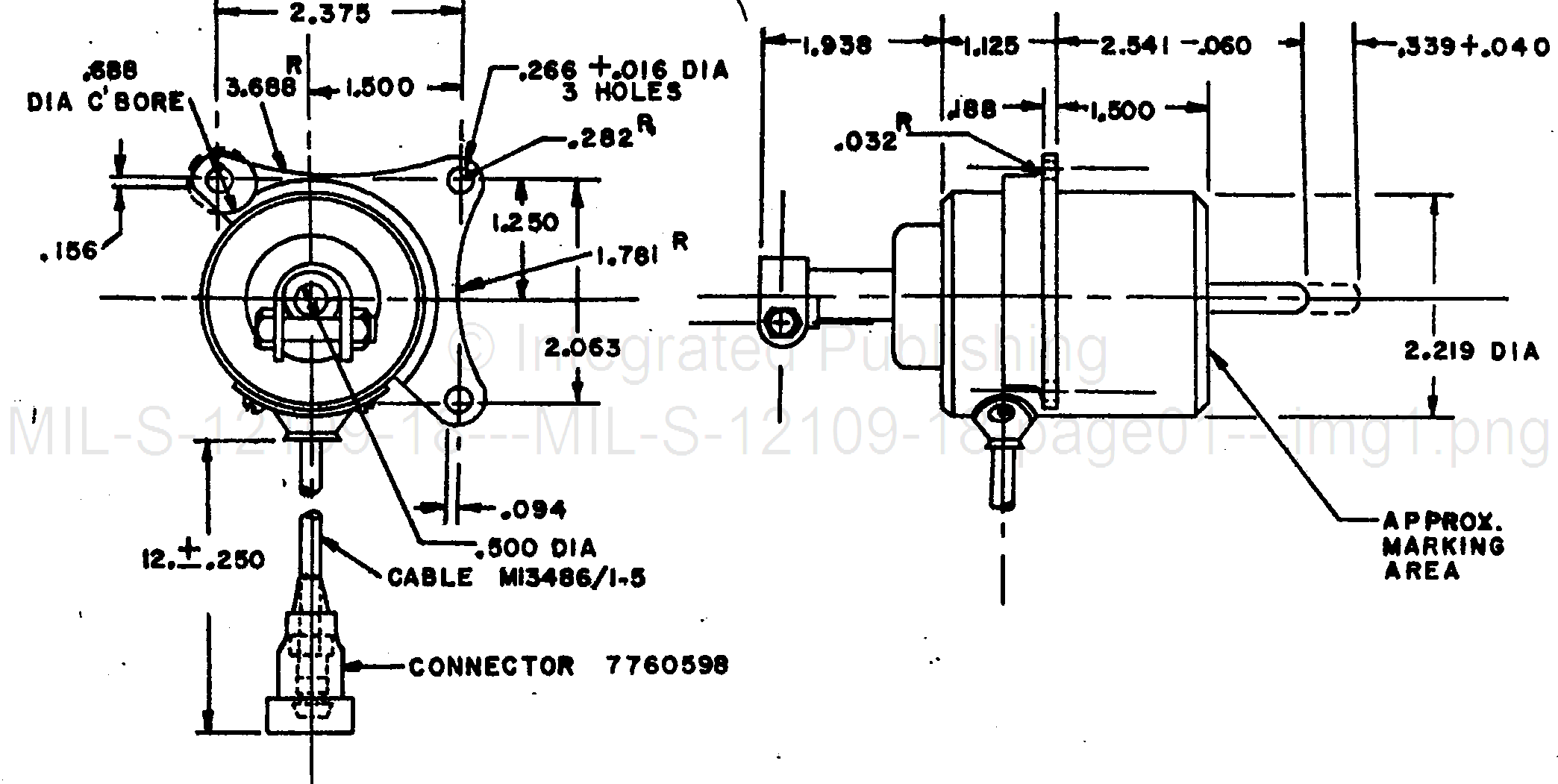

NOTE: Dimensions are in inches. Unless otherwise specified, tolerances are +.010 on decimals, +2 on angular dimensions.
FSC 5945
Page 1 of
2 pages
