MILITARY SPECIFICATION SHEET Solenoid, Electrical; Class 1 (Cannon),
90 MM, 24 Volt DC, 28 AMP Max.
MIL-S-12109/10
31 October 1968
The complete requirements for procuring the Solenoid described herein shall consist of this document and the issue in effect of Specification MIL-S-12109.
This specification is mandatory for use by all Departments and Agencies of the
Department of Defense.

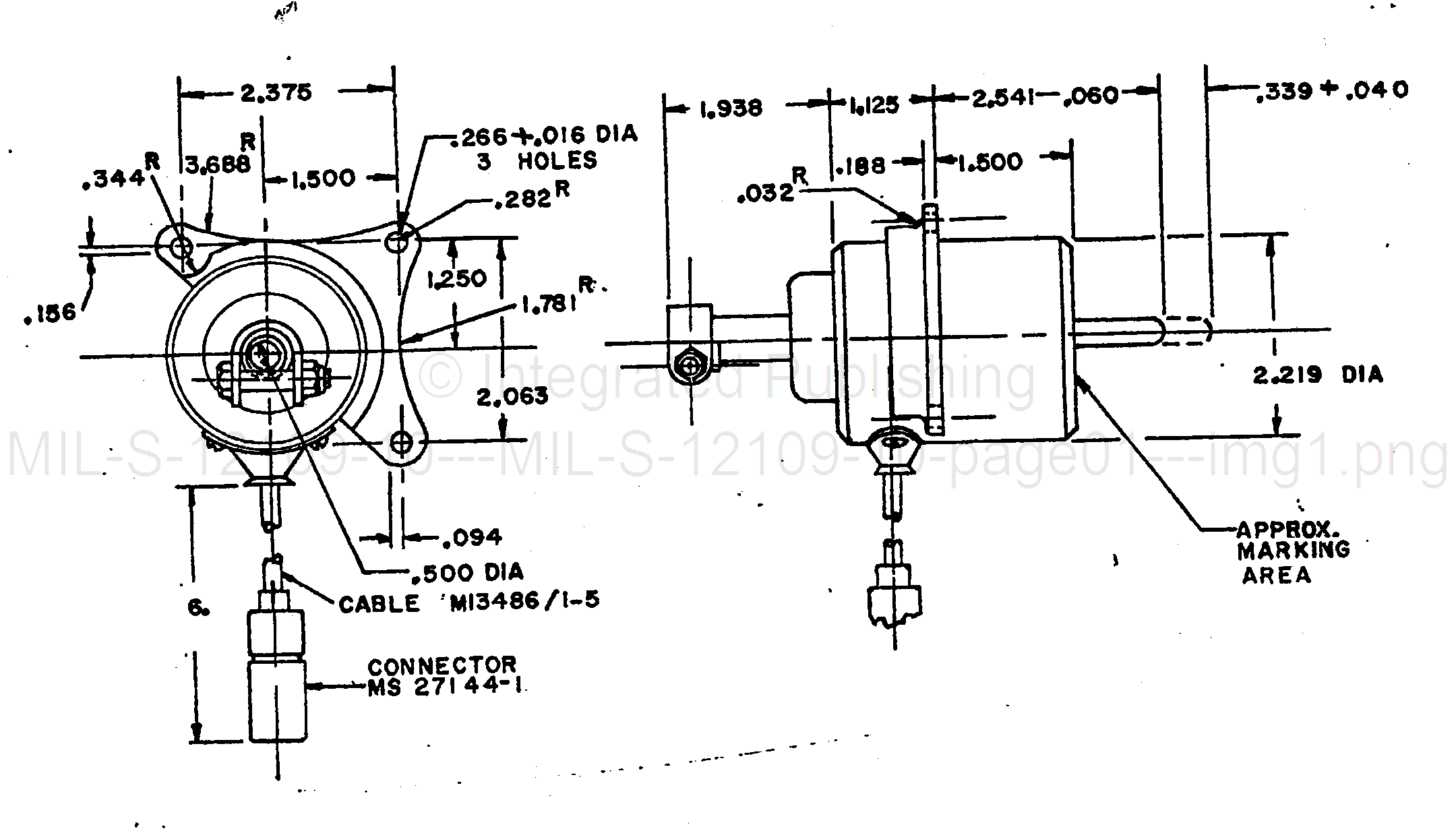

Note: Dimensions are in inches. Unless otherwise specified, tolerances are +.010 on decimals,
+2 on angular dimensions.
FSC-5945
