MIL-PRF-83536/19B
Inches
mm
Inches
mm
.001
0.03
.200
5.08
.005
0.13
.270
6.86
.010
0.25
.400
10.16
.020
0.51
.500
12.70
.040
1.02
.800
20.32
.062
1.57
1.010
25.65
.078
1.98
1.025
26.04
.079
2.01
1.250
31.75
.094
2.39
1.310
33.27
.140
3.56
1.910
48.51
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .010 (0.25mm) for three place decimals and .03 (0.8 mm) for two
place decimals.

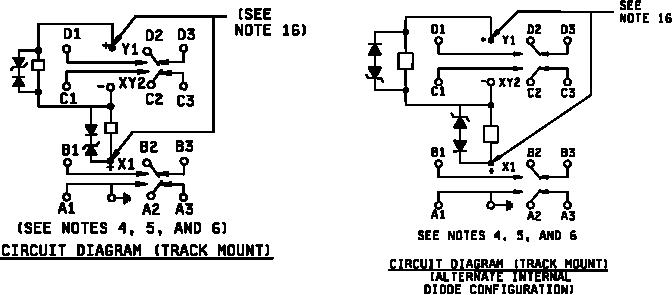

4. Relay is magnetically latched in both positions.
5. Caution note to observe polarity must appear on relays with dc coils.
6. Terminal numbers shall not appear on the header or on the gasket. There shall be affixed to the relay a
suitable legible circuit diagram that identifies each terminal location specified.
7. Enclosure shall be brown 30252 in accordance with FED-STD-595.
8. With the same magnitude and polarity voltage applied to terminals X1-XY2 simultaneously, the relay contacts
shall not transfer from the condition existing prior to the application of voltage to both coils.
9. With 20 dc maximum applied initially to terminals X1-XY2 the subsequent application of 28 V dc minimum to
terminals Y1-XY2 (while the voltage is maintained on terminals X1-XY2) shall not cause the relay contacts to
transfer from the condition resulting from the application of voltage to terminals X1-XY2 prior to the application
of voltage to terminals Y1-XY2. Removal of voltage from terminals X1-XY2 (while voltage is maintained on
terminals Y1-XY2) shall cause relay contact transfer.
10. With 20 V dc maximum applied initially to terminals Y1-XY2 the subsequent application of 28 V dc to terminals
X1-XY2 (while the voltage is maintained on terminals Y1-XY2) shall not cause the relay contacts to transfer
from the condition resulting from the application of voltage to terminals Y1-XY2 prior to the application of
voltage to terminals X1-XY2. Removal of voltage from terminals Y1-XY2 (while voltage is maintained on
terminals X1-XY2) shall cause relay contact.
7
