MIL-PRF-83536/13C
Inches
mm
Inches
mm
.001
0.03
.200
5.08
.005
0.13
.270
6.86
.010
0.25
.325
8.26
.020
0.51
.400
10.16
.031
0.79
.500
12.70
.040
1.02
.52
13.2
.062
1.57
.800
20.32
.078
1.98
1.025
26.04
.079
2.01
1.110
28.19
.094
2.39
1.250
31.75
.100
2.54
1.413
35.89
.140
3.56
2.010
51.05
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance are .010 (0.25mm) for three place decimals and .03 (0.8 mm) for two
place decimals.

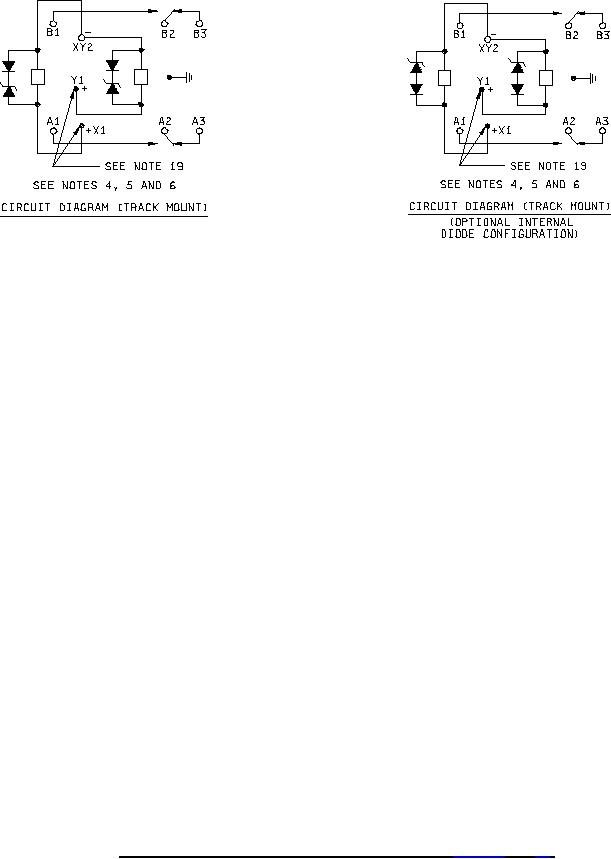

4. Relay is magnetically latched in both positions.
5. Caution note to observe polarity must appear on relays with dc coils.
6. Terminal numbers shall not appear on the header or on the gasket. There shall be affixed to the relay a
suitable legible circuit diagram that identifies each terminal location specified.
7. Enclosure shall be brown 30252 in accordance with FED-STD-595.
8. With voltage applied to terminals X1-XY2 only, the relay contacts shall transfer and remain transferred
regardless of whether the coil voltage is maintained beyond the operate time or removed.
9. With voltage applied to terminal Y1-XY2 only, the relay contacts shall transfer back to the condition existing
before the voltage was applied to X1-XY2 and shall remain in this "retransferred" condition regardless of
whether the coil voltage is maintained beyond the operate time or removed.
10. With the same magnitude and polarity voltage applied to terminals X1-XY2 and Y1-XY2 simultaneously, the
relay contacts shall not transfer from the condition existing prior to the application of voltage to both coils.
11. With 20 V dc maximum applied initially to terminals X1-XY2, the subsequent application of 28 V dc minimum to
terminals Y1-XY2 (while the voltage is maintained on terminals X1-XY2) shall not cause the relay contacts to
transfer from the condition resulting from the application of voltage to terminals X1-XY2 prior to the application
of voltage to terminals Y1-XY2. Removal of voltage from terminals X1-XY2 (while voltage is maintained on
terminals Y1-XY2) shall cause the relay contact transfer described in note 9.
FIGURE 2. Outline dimensions and configuration, track mount (see notes 16 and 17) Continued.
7
