MIL-PRF-6106/43B
Inches
mm
Inches
mm
Inches
mm
.005
0.13
.203
5.16
1.910
48.51
.010
0.25
.375
9.53
2.000
50.80
.060
1.52
.380
9.65
2.440
61.98
.100
2.54
.437
11.11
2.500
63.50
.171
4.34
.440
11.18
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).

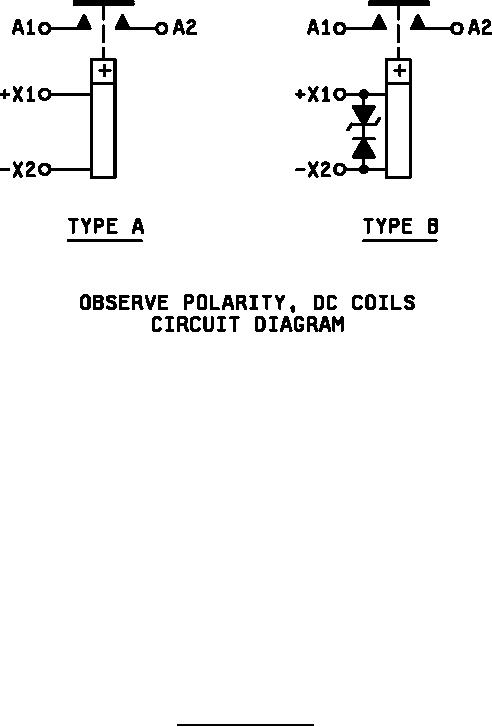

4. Terminal numbers need not appear on the relay header provided there is affixed to the relay a suitable legible
circuit diagram that identifies each terminal location specified.
FIGURE 1. Relay, outline drawing - Continued.
2
