MIL-PRF-6106/32(USAF)
NOTE: The document identifier and heading has been changed
on this page to reflect that this is a performance specification.
30 December 1977
There are no other changes to this document. The document identifier
on subsequent pages has not been changed, but will be changed the next time this
document is revised.
PERFORMANCE SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, SOCKET MODULE EXTRACTION TOOL
This specification sheet is approved for use by the Engineering and
Technical Support Division, AFLC/LOIE, Department of the Air Force, and is
available for use by all Departments and Agencies of the Department of
Defense.
The requirements for procuring the socket module extraction tool
described herein shall consist of this document and the latest issue
of Specification MIL-PRF-6106.
Inches
mm
Inches
mm
3.18
.125
0.13
.005
15.24
.600
0.25
.010
22.48
.885
0.38
.015
25.40
1.000
0.64
.025
44.45
1.750
0.94
.037
99.06
3.900
2.03
.080
2.54
.100
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information.

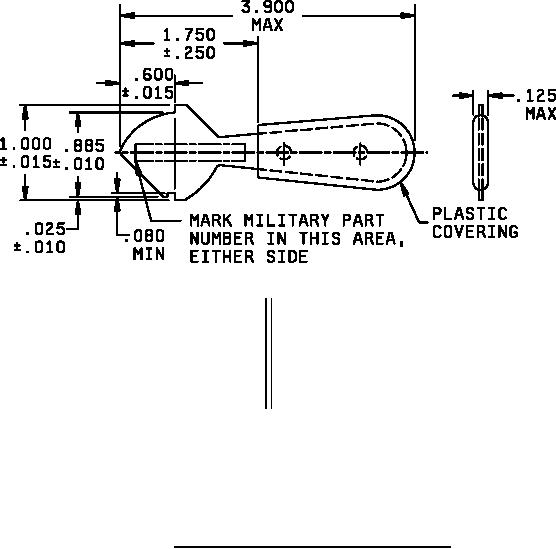

FIGURE 1. Outline drawing, socket module extraction tool.
1 of 2
FSC 5945
