MIL-PRF-6106/31(USAF)
NOTE: The document identifier and heading has been changed
on this page to reflect that this is a performance specification.
30 December 1977
There are no other changes to this document. The document identifier
on subsequent pages has not been changed, but will be changed the next time this
document is revised.
PERFORMANCE SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, RELAY EXTRACTION TOOL
This specification sheet is approved for use by the Engineering and Technical
Support Division, AFLC/LOIE, Department of the Air Force, and is available for use
by all Departments and Agencies of the Department of Defense.
The requirements for procuring the relay extraction tool described herein
shall consist of this document and the latest issue of Specification
MIL-PRF-6106.
Inches
mm
Inches
mm
.010
0.25
.500
12.70
.020
0.51
.765
19.43
.030
0.76
.810
20.57
.090
2.29
1.010
25.65
.095
2.41
1.100
27.94
.140
3.56
1.687
42.85
.375
9.52
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

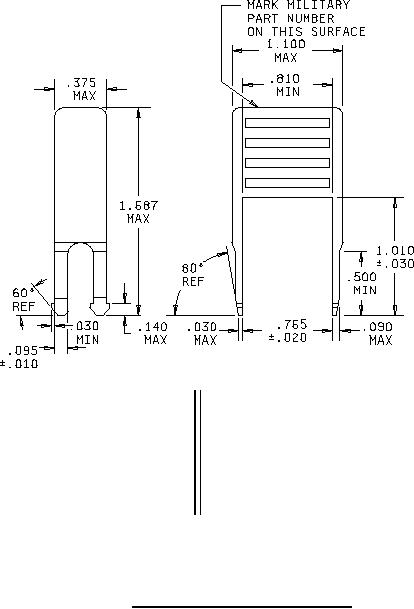

FIGURE 1. Outline drawing, relay extraction tool.
1 of 2
FSC 5945
