INCH-POUND
MIL-PRF-28750/8C
1 February 1999
SUPERSEDING
MIL-R-28750/8B(EC)
24 February 1988
PERFORMANCE SPECIFICATION SHEET
RELAY, SOLID-STATE, HERMETICALLY SEALED, CLASS II, OPTICALLY ISOLATED,
600 mA, 50 V dc, SIGNAL SWITCHING, SPST(N.O.)
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall
consist of this specification and MIL-PRF-28750.
Inches
mm
.002
0.05
.018
0.046
.020
0.051
.105
2.67
.135
3.43
.190
4.83
.270
6.86
.300
7.62
.500
12.70
.530
13.46
.600
15.24
.830
21.08
.890
22.61
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Terminal numbers shown above are for reference only .

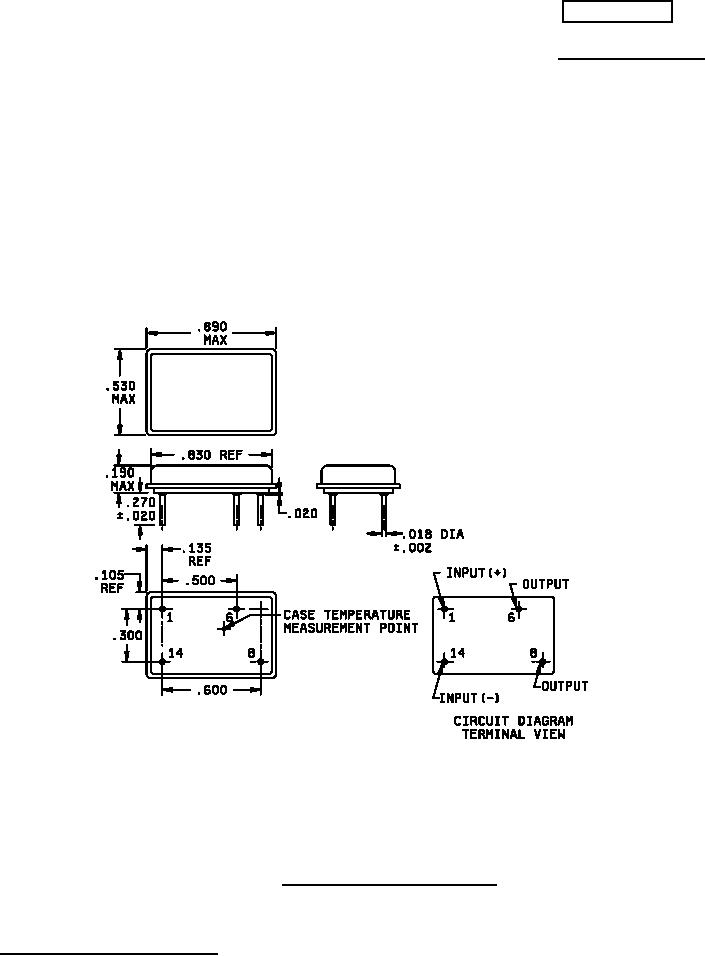

FIGURE 1. Outline drawing and dimensions.
AMSC N/A
1 of 4
FSC 5945
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
