INCH-POUND
MIL-DTL-83729/2D
04 March 2013
SUPERSEDING
MIL-DTL-83729/2C
14 June 2002
DETAIL SPECIFICATION SHEET
CHOPPERS, ELECTROMECHANICAL,
DUST TIGHT, SINGLE POLE, DOUBLE THROW,
MAKE BEFORE BREAK
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification sheet and MIL-DTL-83729.
Letter
Inches
mm
A
MAX 2.344
MAX 59.54
B
MAX 4.000
MAX 101.60
C
MAX 2.078
MAX 52.78
D
MAX .562
MAX 14.27
E
MAX .625
MAX 15.88

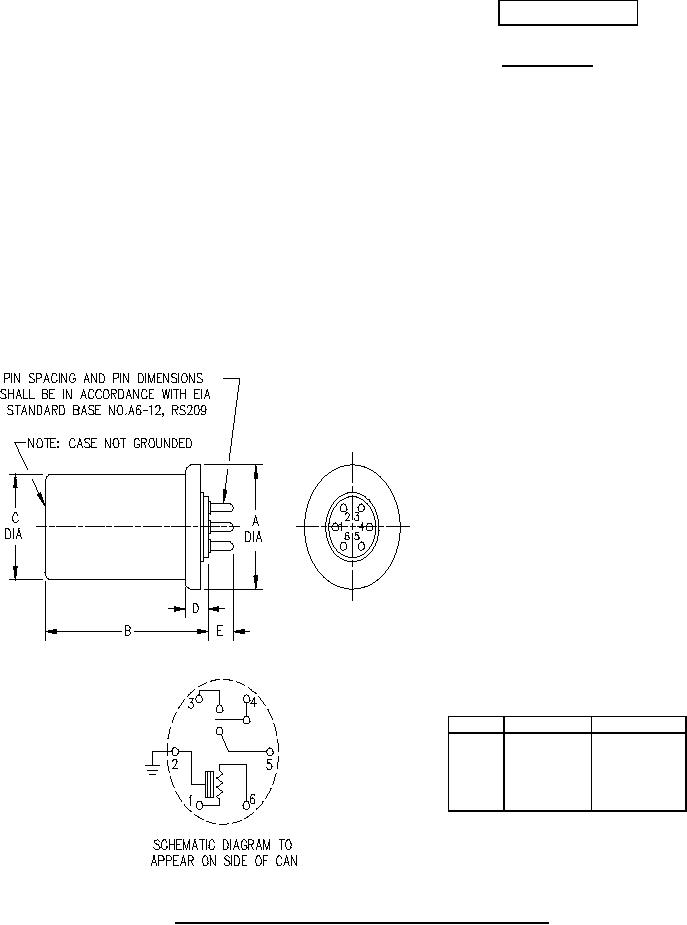

FIGURE 1. Outline drawing, terminal arrangement and schematic diagram.
AMSC N/A
FSC 5945
