MIL-DTL-12109/8A
REQUIREMENTS:
R 3.688
2.375
∅ .266+.016
R .032
1.500
3 HOLES
R .344
2.541-.060
.339+.040
1.125
R .282
1.500
1.938
1.250
.188
R 1.781
.156
∅ 2.219
2.063
.094
∅ .500
APPROXIMATE
15.250 ± .250
CABLE M13486/5-1
MARKING AREA
.375
SKIN AND TIN
NOTES:

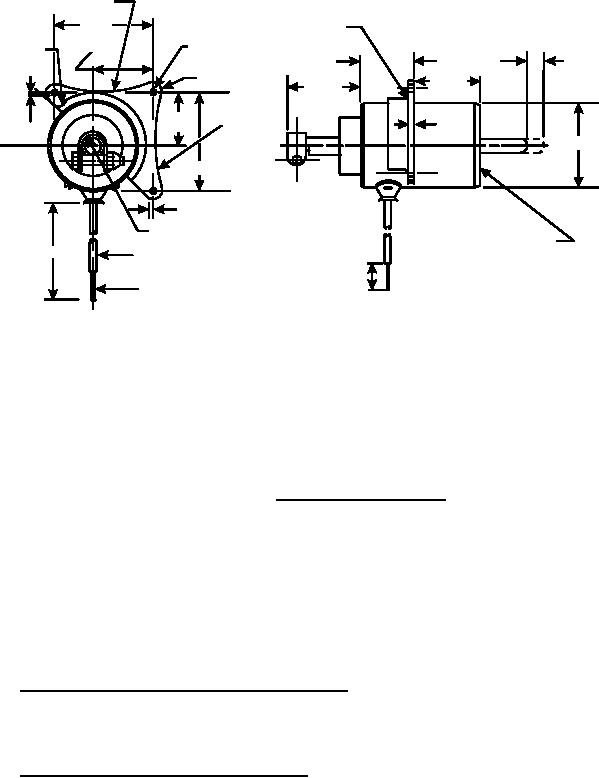

1. This drawing is for interface and envelope dimension requirements and is not
intended to limit design.
2. Dimensions are inches, unless otherwise specified, tolerances are ± .010 on
decimals, ± 2° on angular dimensions.
FIGURE 1. Solenoid characteristics.
The static force shall be a minimum of 35 pounds (lb) (16 kilograms (kg)), over 0.339 inches (in.)
(0.86 centimeters (cm)) stroke over the specified operating voltage range.
The current shall not exceed 28 amperes maximum.
NOTES:
PART OR IDENTIFYING NUMBER (PIN):
M12109/8 (Former Army Part Numbers M12109/8-1 and 8376654).
CHANGES FROM PREVIOUS ISSUE: Marginal notations are not used in this revision
to identify changes with respect to the previous issue due to the extent of the changes.
