A-A-55143/2B
mm
Inches
0.05
.002
0.51
.020
1.98
.078
3.18
.125
3.97
.156
4.75
.187
6.35
.250
7.14
.281
9.53
.372
15.88
.625
22.20
.874
1.406
35.71
1.531
38.89
48.41
1.906
NOTES:
1. Dimensions are in millimeters.
2. Tolerance is ±0.25 millimeter (.010 inch).
3. The US government preferred system of measurement is the metric SI system. However, this item
was originally designed using inch-pound units of measurement. In the event of conflict between
the metric and inch-pound units, the inch-pound units shall take precedence.

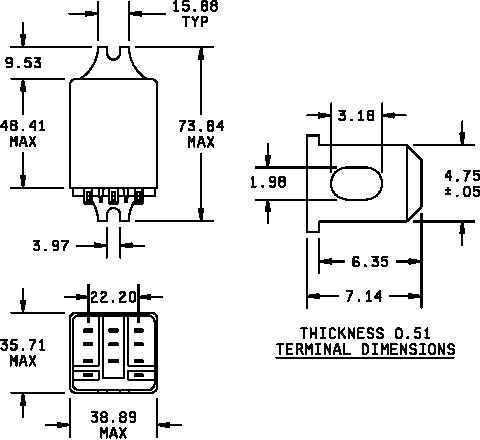

FIGURE 1. Dimensions and configurations.
2
