A-A-55143-1 Relays, Electromagnetic, General Purpose 10 Amperes, 1-3Pdt, Ac And Dc Coils, Socket MountThis CID covers the general requirements for socket mount 10 ampere relays. Socket mount 10 ampere relays covered by this CID are intended for commercial, industrial, and ground support applications.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

A-A-55143/1C

Inches

0.05

.002

0.25

.010

0.51

.020

1.98

.078

3.18

.125

4.75

.187

6.35

.250

7.14

.281

22.20

.874

35.71

1.406

38.89

1.531

48.41

1.906

NOTES:

1. Dimensions are in millimeters.

2. Tolerance is � 0.25 millimeter (.010 inch).

3. The US government preferred system of measurement is the metric SI system. However, this item

was originally designed using inch-pound units of measurement. In the event of conflict between

the metric and inch-pound units, the inch-pound units shall take precedence.

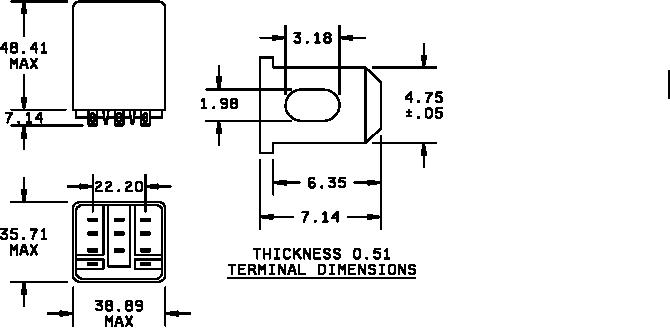

FIGURE 1. Dimensions and configurations.
